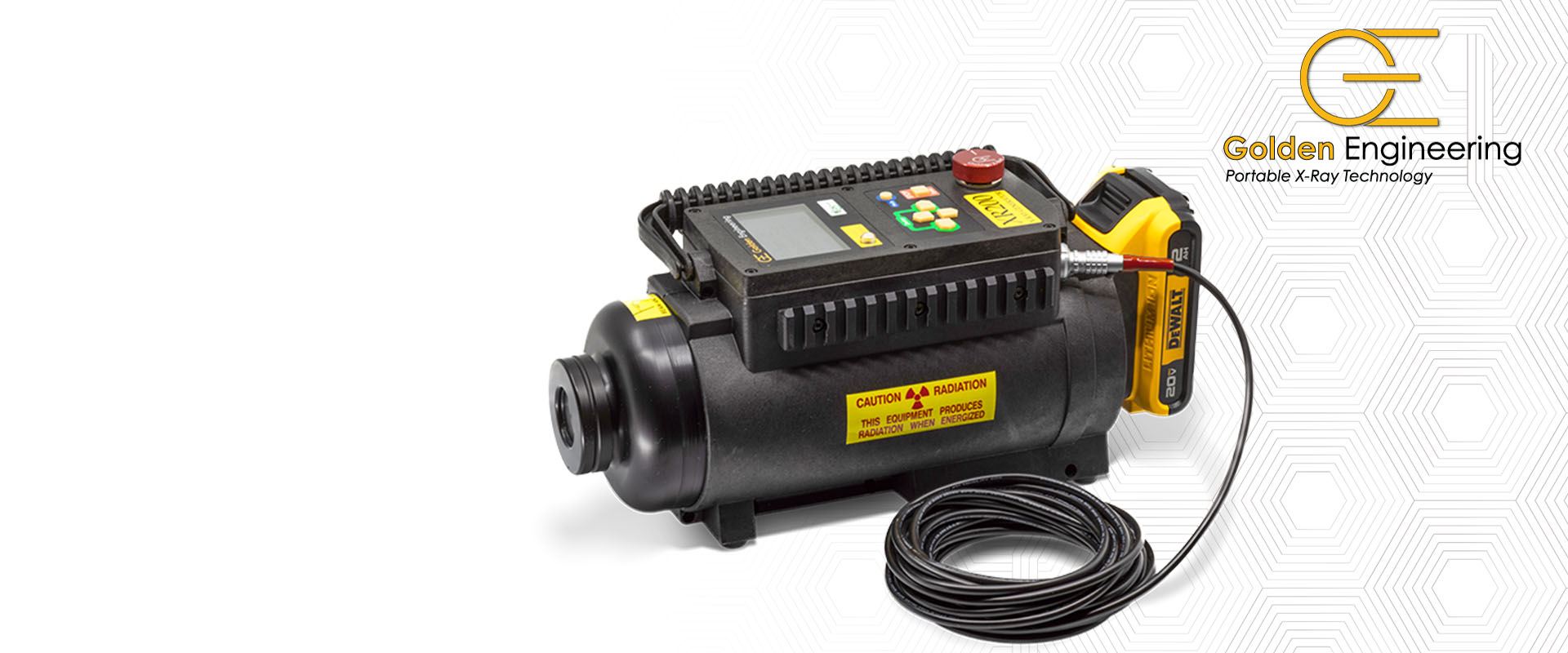

XR200

NEW GFX Model

20 V Portable X-Ray Generator

The XR200, from Golden Engineering, is a 150kV, single-package, pulsed X-ray source used by military, law enforcement, corporate security, and industrial personnel for radiographic examination of various items. The option of use with conventional radiographic film, instant radiographic film, or digital inspection systems provides users with the flexibility to develop a complete radiographic system best suited to their individual needs. The combination of battery power and minimal weight allows the user to obtain radiographs in even the most remote location.

150 kVp Light Duty Pulsed X-Ray Machine

The redesigned XR200 has an 80 character LCD (20x4), menu based interface and is powered by a DeWalt 20 V Li-Ion battery.

New Features

• Pulse setting up to 999 pulses
• Variable pulse rate (1 pulse per second or slower)
• Set multiple pulse trains
• Select time delay between pulse trains
• Records total life pulses on source
• Two re-settable pulse trackers
• Retro-fit existing XR200 X-Ray Generators
• Lemo K Series circular connector
• 21 mm Picattinny Rails for mounting accessories
• New hassle-free tripod mount
• 6000 pulses per battery charge
• Battery includes charge indicator

Highly Portable

• Source with battery is 8% lighter than previous version
• Compact size is 13% smaller in volume
• Battery weighs less than 1 lb (.45 kg)

Specifications

• Length: 12.17" (30.91 cm)
• Height: 5.83" (14.81 cm)
• Width: 4.26" (10.82 cm)
• Power: DeWalt 20 V Li-Ion Battery
• Weight: 11.0 lb / 5.0 kg (including battery)
• Output Dose: Average 3 mR / pulse, measured 12" (30 cm) from source
• Pulse Rate: 10 pulses per second
• Source Size: 1/8" (3 mm)
• Max Photon Energy: 150 kVp
• Pulse Width: 50 nanoseconds
• Beam Angle: 40° standard
• Current Draw: 9 amps
• Max Duty Cycle: 200 pulses per 4 minutes
• Operating Temperature: -4 to 158 °F (-20 to 70 °C)
• IP Rating: IP54
• Warm Up: NONE Required
• Warranty: 1 year limited parts, labour, and service.
