Tripod & Pan/Tilt Head Set (XR150 Source)
Ideally suited for the XR150, this Tripod set has been specifically chosen to meet the portability and weight requirements of the Golden Engineering XR150 portable x-ray source.
Set includes:
- Manfrotto MT290XTA3US 290 Xtra Aluminum Tripod
- Manfrotto 804-3W 3-Way Pan/Tilt Head

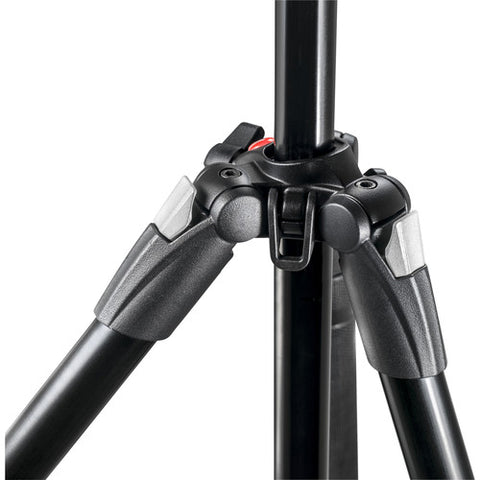

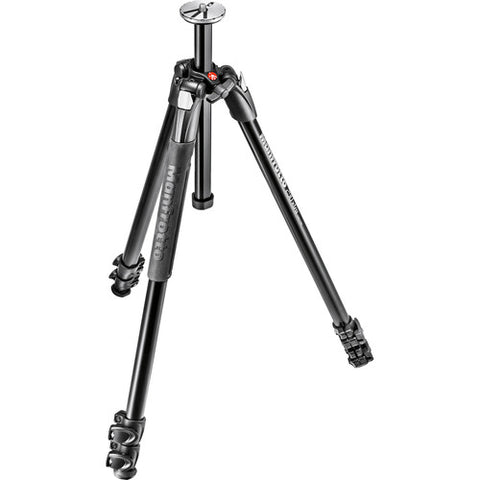

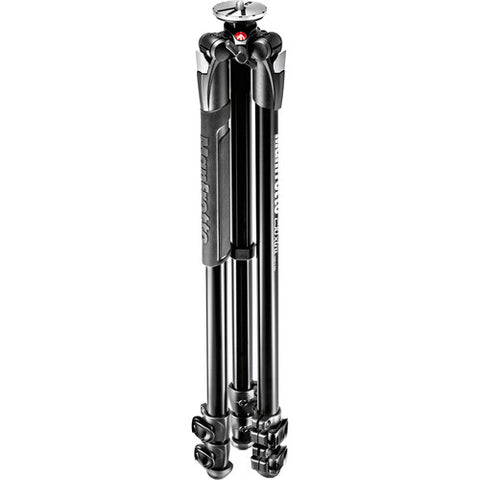

The Manfrotto MT290XTA3US 290 Xtra Aluminum Tripod extends from 12" to a maximum height of 63.2". It weighs 4.4 lb and can hold up to 11 lb of gear. The tripod's 3-section legs have flip locks to individually change the height of each leg. The locks are tension-adjustable to help maintain a tight lock over the tripod's lifespan. Four leg angles allow you to position the tripod in a variety of ways. A rubber grip on one of the legs aids in carrying the tripod, and rubber feet keep it stable on slippery surfaces. Included with the tripod is a shoulder bag for added comfort and protection during transport.

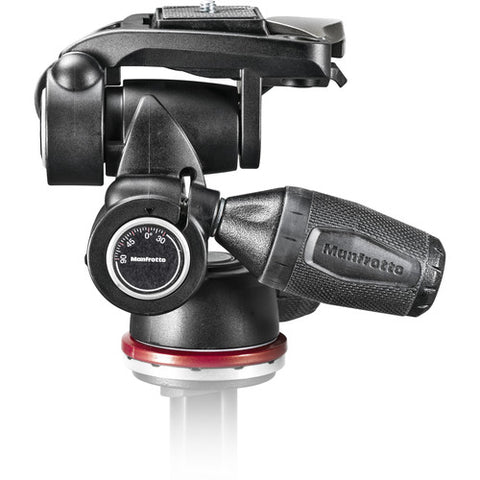

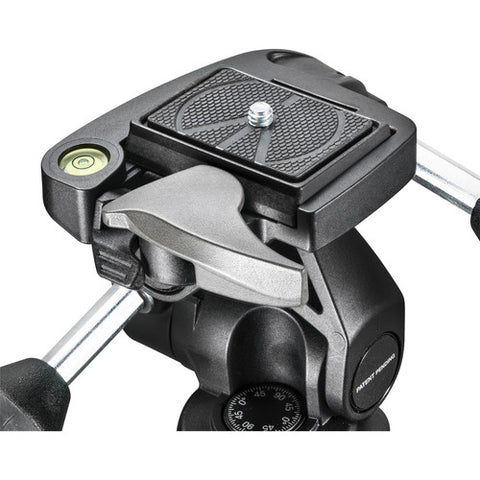

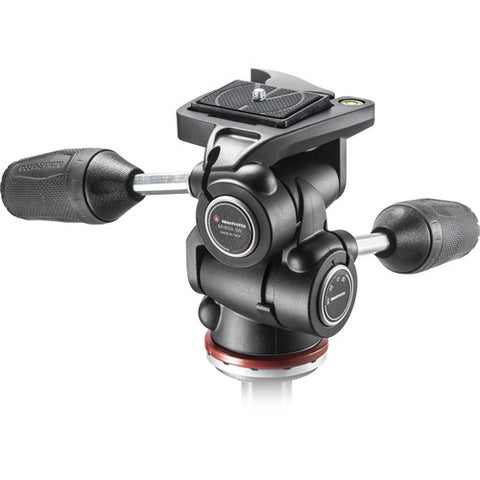

The Manfrotto 804-3W 3-Way Pan/Tilt Head incorporates retractable handles which decreases the overall size when not in use. A built-in spring assists with the tilting motion of the head by compensating for heavier lenses and cameras with off-center loads. The head stands 4.7" high, weighs 1.65 lb, and can hold up to 8.8 lb. A 200LT-PL quick-release plate is included for quickly attaching and removing your camera from the head.
Specifications
Tripod | |
---|---|
Load Capacity | 11 lbs / 5 kg |
Maximum Working Height | 63.2" / 160.5 cm |
Max Height without Center Column | 53.9" / 136.9 cm |
Minimum Working Height | 12" / 30.5 cm |
Folded Length | 23.4" / 59.4 cm |
Head Mount Type | 3/8"-16 Screw |
Weight | 3.9 lbs / 1.8 kg |
Materials | Aluminum Alloy |
Pan/Tilt Head | |
---|---|
Material | Technopolymer |
Load Capacity | 8.8 lb (4 kg) |
Tilt Range | Front: -30° / 90° Lateral: -30° / 90° |
Panning Range | 360° |
Quick Release | Yes, RC2 |
Bubble Level | Yes, bull's eye |
Friction Control | No |
Tripod Mount Thread Size | 3/8"-16 |
Height | 4.7" (12 cm) |
Weight | 1.65 lb (750 g) |
